Architrave/Header 5-1/2" - 5

Architrave/Header 5-1/2" - 5

Architrave/Header 5-1/2" - 5

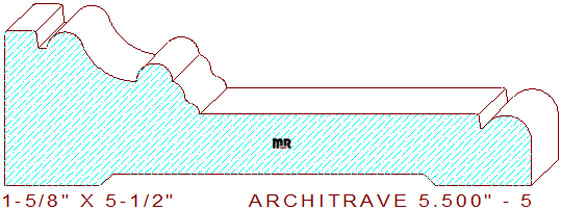

This aesthetically appealing architrave/header 5-1/2" - 5 measures 5.500" width by 1.625" thickness, requiring a 5-3/4" wide blank of eight-quarter lumber for milling on industrial equipment. The ornate profile contains an 11/32" wide by 3/16" tall raised area joined to a 3/32" sunk fillet on the top left. The short flat line connects with a lovely two-tangent radius downsloping s-shaped curvature, attached to a half-circle and a steep wavey curve. The center retains a 2-15/16" flat line with a small step and a 9/32" radius half-round on the design's right edge. We offer a smaller profile with similar design characteristics for your review and consideration, casing 4.000" - 151.

Review our commentary on custom-made pressure shoes. This helpful step-by-step article will help you mill this profile to perfection. Did you know we design and grind profile knives for all the prominent machinery brand names, including Weinig, Leadermac, Homag, SCMI, Diehl, Wadkin, Williams & Hussey, and more? Try our exceptional services; you will be delighted with the results; all the beautiful moldings you manufacture will surely be a cut above the rest.

Before you begin knife grinding procedures, review this article on knife cutting circles to determine if you can safely cut this pattern on your machinery, this profile might have knife swing issues on specific machine models.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 1.317
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.125

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$405.50
$355.50
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$430.50
$380.50
Total:
$811.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$455.50
$405.50
Total:
$861.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
