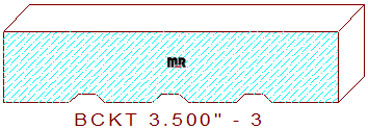

This Backout/Relief Cut Moulding Knife Design 3-1/2" - 3 measures 3.500" wide, with a .093" depth of cut on the bottom horizontal moulding cutter. This profile can be utilized on many of our tongue and groove profiles like flooring, siding, etc. simply search by thickness dimensions.
The design layout is comprised of three forty-five degree chamfered plows, flanked by 1/2" wide fillets in the center, and 11/16" wide fillet on each side of the pattern. The maximum width this backout knife can mill is 4-1/4" wide, that’s if the bottom moulder spindle is positioned at .000" axially.
Take advantage of our specialized design skills, over thirty years of experience in moulding manufacturing, superior designed moulding templates, and exceptional quality custom moulding knives.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
