Base Moulding 3-1/4" - 31

Base Moulding 3-1/4" - 31

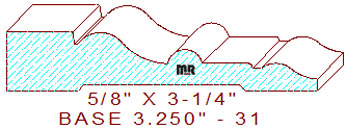

This Stylish Base Moulding 3-1/4" - 31 measures 3.250" wide by .625" thickness with a .500" depth of cut on the top horizontal cutters. Please search our backout category for an appropriate relief cut for this pattern, we have a few options to choose from.

The profile is comprised of a 23/32" wide horizontal line with an eased edge, attached to a graceful cyma reversa that transitions into a 3/16" radius half round circle, connected to a straight line with a 3/32" wide sunk fillet, joined to another smaller cyma reversa/ogee at the top of the pattern. We have a few other baseboards and a casing that would complement this pattern for your review and consideration, Base 3.250" - 43, Base 3.250" - 44, Base 3.250" - 57, and Case 2.500" - 47.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
