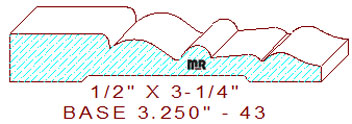

This Decorative Base Moulding 3-1/4" - 43 measures 3.250" wide by .500" thickness with a .340" depth of cut on the top horizontal profile cutters. Please search our backout category for an appropriate relief cut for this pattern, we have a few options to select from.
The design is comprised of a 1-1/16" wide horizontal line with a 3/32" radius edge, attached to a cyma reversa that transitions into a 9/64" radius half round circle, connected to a tapered line with a 9/64" radius edge, joined to another smaller cyma reversa/ogee at the top of the pattern. We have a few other baseboards and a casing that would complement this pattern for your review and consideration, Base 3.250" - 31, Base 3.250" - 44, Base 3.250" - 57, and Case 2.500" - 47.
We provide the cut steel size on all our template designs, this handy feature allows you to purchase the correct size width of knife steel before you start grinding procedures for moulding production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
