Base Moulding 5-1/4" - 37

Base Moulding 5-1/4" - 37

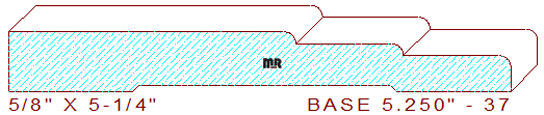

This Base moulding 5-1/4" - 37 measures 5.250" wide by .625" thickness. The tiered profile is comprised of a three-inch wide eased edge fillet with an eighth inch round over, attached to a two 1-1/8" wide by .125" deep steps with an 1/8" radius quarter round circle used in the transitions, leaving a .375" thickness dimension on the thin side of the detail. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

We offer many other similar baseboard and casing designs that will complement this southwest style design, here are just a few of them for your review and consideration, casing 2.250" - 35, casing 3.250" - 71, baseboard 3.250" - 21, and base 5.750" - 30. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.250" / Depth of Cut = .500" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
