Baseboard 5-3/4" - 30

Baseboard 5-3/4" - 30

Baseboard 5-3/4" - 30

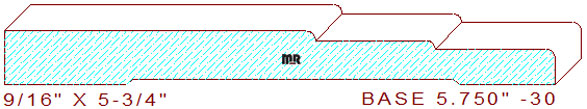

This handsome 5-3/4" - 30 base moulding measures 5.750" wide by .563" thickness, permitting the pattern to be machined out of four-quarter lumber. The three-step profile comprised a 3-1/4" wide flat line with a 3/32" rounded inside edge on the top left. It's attached to two 1-1/4" wide by 3/32" deep stepped lines with 3/32" quarter circles used in transition leaving a .375" thickness dimension on the right side of the design.

We offer many similar styles of base & casing designs in our moulding catalog, here are a few of them for your review and consideration, door casing 2.250" - 35, door casing 3.250" - 71, baseboard 3.250" - 21, baseboard 5.250" - 37, baseboard 5.250" - 38, baseboard 5.750" - 8, and baseboard 5.750" - 31.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.750
Depth of Cut: 0.438
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.063

Grades of Steel

in-depth descriptions

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$368.00
$368.00
Total:
$736.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$394.00
$394.00
Total:
$788.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$420.00
$420.00
Total:
$840.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
