Base Moulding 5-3/8" - 4

Base Moulding 5-3/8" - 4

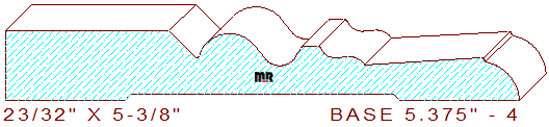

This lavish baseboard moulding 5-3/8" - 4 measures 5.375" wide by .718" thickness, facilitating the use of four quarter lumber for milling this detail on an industrial style molder. The extravagant profile is comprised of a 1-23/32" wide straight line with a 9/32" wide forty-five degree beveled edge on the left, connected to a short but profound two tangent radius ogee the joins with a 3/16" wide raised fillet an a petite cyma recta in the center, attached to a an up-sloping 3.304 degree beveled line with a 3/64" rounded edge the merges with a 7/16" quarter round circle on the right side of the image. We offer many casing profiles that will compliment this baseboard, here are a few you may want to review and consider, casing 4.375" - 4 and casing 4.750" - 5.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.375" / Depth of Cut = .718" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
