Chair Rail 3" - 24

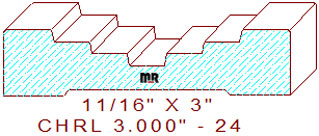

This southwest symmetrical casing 3" - 24 measures 3.000" wide by .687" thickness, enabling the pattern to be machined out of four quarter lumber. The American Indian influenced profile is composed of a 13/32" wide by 1/8" deep sunk fillet in the center, flanked by two more 13/32" wide by 1/8" tall steps and a 1/2" wide flat line segment with 3/64" eased edges on each top side. We offer a bunch of moulding designs with Indigenous American & Hispanic overtones, here are just a few you may want to review and consider, baseboard 5.500" - 132, baseboard 7.000" - 8 and casing 3.000" - 44.

Our professionally designed acrylic templates and knives include the required draft angles and blend areas to maintain the ability to sharpen the blades properly without modifying the detail, while simultaneously prolonging the milling time between sharpening. Whether you own an industrial shaper or moulder such as a Weinig, Wadkin, Leadermac, SCM, Diehl, Northtech or Homag molder, our precision cutters will mill flawlessly on them all.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .375" (top knives) & .062" (bottom cutters).
