Chair Rail 3" - 44
Chair Rail 3" - 44

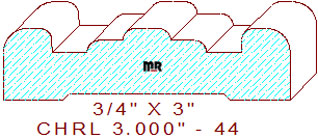

This southwest themed 3" - 44 chair rail measures 3.000" wide by .750" thickness, enabling the pattern to be machined out of four-quarter lumber. The American Indian-influenced profile is composed of a 1/2" wide by 1/8" tall raised fillet on the top center, flanked by two-tiered 3/8" wide by 1/8" deep step with 1/8" round-overs, connected to a 3/8" wide sunk fillet that connects to a 1/2" wide towering raised fillet with 1/8" inner and 1/4" outer rolled edges on each side of the pattern. We offer several moulding designs with Indigenous American & Hispanic overtones, here are just a few you may want to review and consider, baseboard 5.500" - 132, baseboard 7.000" - 8 and casing 3.000" - 24.
We're delighted you found a functional profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry, read some of our informational articles ; they will help you get started with all the basics. We share a passion for excellence and a quest to be the premier artisans for all our clients.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.382
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$239.00
$239.00
Total:
$478.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$254.00
$254.00
Total:
$508.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$276.50
$276.50
Total:
$553.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
