Base Moulding 6" - 31

Base Moulding 6" - 31

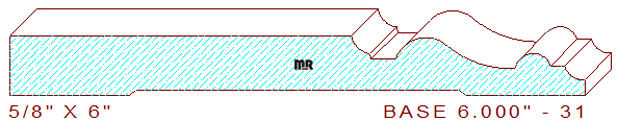

This Colonial Baseboard 6" - 31 measures 6.000" wide by .625" thickness with a .461" depth of cut on the top horizontal moulding cutters. Search our backout category for an appropriate relief cut for this pattern, we have a few options to choose from.

The time-honored profile is comprised of a 3-9/16" wide horizontal line, connected to a 15/64" radius cove with a small vertical line, attached to a 1/4" wide sunk fillet that transitions into a cyma reversa, joined to a 3/8" wide half round circle with a 9/64" wide horizontal line and a 13/64" radius cove located at the top of the pattern. We have a few very similar profiles you may want to review and consider, baseboard 6.000" - 64, and baseboard 6.000" - 84.

With over 15,000 profile designs in our search by size moulding catalog, there is something for everyone’s creative architectural style. Utilize our Moulding Manufacturers Map listed by states to help you locate a local mill in your area to manufacture this stylish base moulding.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
