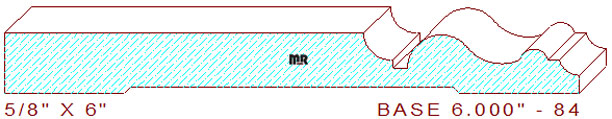

This Conventional Baseboard 6" - 84 measures 6.000" wide by .625" thickness with a .437" depth of cut on the top horizontal moulding knives. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to select from.
The established profile is comprised of a 3-3/4" wide horizontal line, connected to a 9/32" radius cove with a 3/32" tall vertical line, attached to a 5/32" wide sunk fillet that transitions into a two tangent radius cyma reversa, joined to a 5/16" wide half round circle with a 1/8" wide horizontal fillet and a 7/32" radius cove positioned at the top of the pattern. We have a couple of other similar profiles you may want to review and consider, baseboard 6.000" - 31, and baseboard 6.000" - 64.
Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
