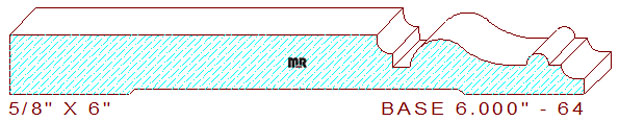

This Traditional Baseboard 6" - 64 measures 6.000" wide by .625" thickness with a .462" depth of cut on the top horizontal moulding blades. Search our backout category for an appropriate relief cut for this pattern, we have a few options for you to pick from.
The conventional profile is comprised of a 3-53/64" wide horizontal line, connected to a 9/64" radius cove with a 9/64" tall vertical line, attached to a 11/64" wide sunk fillet that transitions into a cyma reversa, joined to a 9/32" wide half round circle with a 1/8" wide horizontal line and a 5/32" radius cove located at the top of the pattern. We have a few other similar profiles you may want to review and consider, baseboard 6.000" - 31, and baseboard 6.000" - 84.
Try one of our fancy base shoe or applied moulding designs on the bottom of the profile, find an irresistibly compelling pattern by simply changing the width search parameters. Let us assist you in shaping your home’s astonishing architectural decor, one attractive moulding profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
