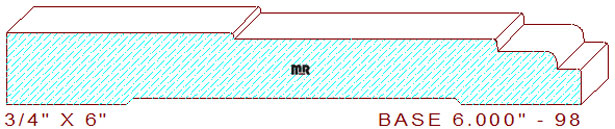

This Base Moulding 6" - 98 measures 6.000" wide by .750" thickness, with a .571" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this detail, we have a few available options for you to choose from.
The cascading pattern is comprised of a 2-3/8" wide by 1/16" deep radius edge fillet, attached to a 2-3/4" wide by 1/8" deep stepped lines, joined to a 5/8" wide by 3/16" deep stepped fillet with a 1/8" radius edge, connected to a 1/4" wide eased edge fillet leaving a 3/8" thickness dimension on the thin side of the pattern. We also have a three inch casing and four inch casing in this same design style for your consideration and use.
Try one of our fancy base shoe or plant on moulding designs on the bottom of the profile, find an irresistibly compelling pattern by simply changing the search parameters. Let us assist you in shaping your home’s astonishing architectural decor, one attractive moulding profile at a time.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
