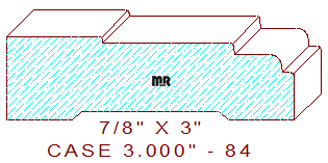

This Casing Moulding 3" - 84 measures 3.000" wide by .875" thickness, with a .571" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this detail, we have a few available options for you to choose from.
The stepped profile is comprised of a 1" wide by 1/16" deep stepped fillet, attached to a 1-3/8" wide by 1/8" deep stepped fillet in the center, joined to a 1/2" wide by 3/16" deep stepped fillet with a 1/8" radius edge, connected to a 1/8" wide eased edge, leaving a 1/2" thickness dimension on the thin side of the pattern. We also have a larger four inch casing and six inch baseboard in this same design style for your consideration and use.
Try utilizing one of our many different size backband mouldings on the side of this pattern, create a stylish and unique moulding casing design for your beautiful home or office, simply alter the search parameters to the size width backband you desire.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
