Casing Moulding 4" - 92

Casing Moulding 4" - 92

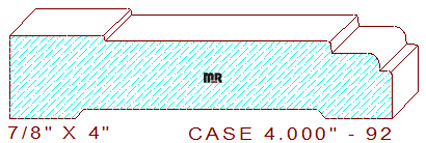

This Casing Moulding 4" - 92 measures 4.000" wide by .875" thickness, with a .571" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this detail, we have a few available options for you to choose from.

The stepped pattern is comprised of a 1" wide by 1/16" deep stepped fillet, attached to a 2-3/8" wide by 1/8" deep stepped line in the middle of the profile, joined to a 1/2" wide by 3/16" deep stepped fillet with a 1/8" radius edge, connected to a 1/8" wide eased edge, leaving a 1/2" thickness dimension on the thin side of the pattern. We also have a smaller three inch casing and six inch baseboard in this same design style for your consideration and use.

Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
