Bed Mould 3" - 1
Bed Mould 3" - 1

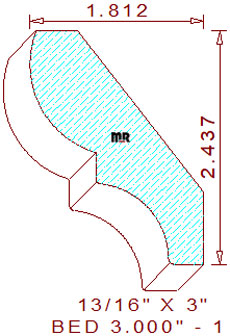

This elegant bed mould 3" - 1 measure 3.000" wide by .812" thickness, authorizing the pattern to be milled sprung (laying horizontally flat) out of four-quarter lumber. The decorative supporting profile is comprised of a 31/32" radius convex semicircular arc on the top left, connected to a 21/64" tall vertical line segment in the center, joined to a 51/64" cove with a 3/8" wide horizontal line on the bottom right. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 2-7/16" tall with a projection of 1-13/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.367
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.596
Top Cutter Head
Width: 3.000
Depth of Cut: 0.607
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$238.00
Not Needed
Total:
$571.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$253.00
Not Needed
Total:
$605.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$275.50
Not Needed
Total:
$656.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
