Bed Moulding 4-17/32"

Bed Moulding 4-17/32"

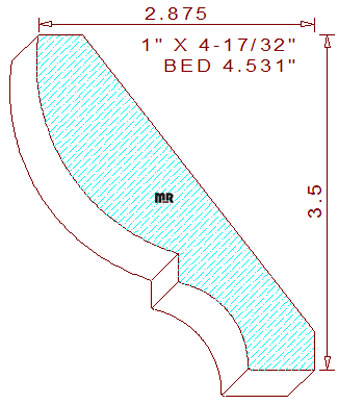

This Bed Moulding Knife Design 4-17/32" measures 4.531" wide by 1.000" thickness, with a .843" depth of cut on the top horizontal moulder cutters.

The profile is comprised of the same geometrical shapes as most bed mouldings, a 2-3/32" radius quarter round circle positioned at the top of the pattern, a 3/16" tall vertical fillet in the center, with a 7/8" radius cavetto and a 11/16" wide horizontal fillet located at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degree, search our bevels category by degree, for a set of back bevel cutters appropriate for this crown moulding design. These specific bevels set the installed height at 3-1/2" tall, with a projection of 2-7/8" wide.

Please read our commentary about Axial Constant Position for Crown Moulding Bevels, this article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the moulder is axially calibrated.
