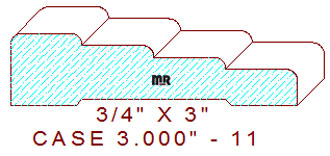

This Stepped Casing Moulding 3" - 11 measures 3.000" wide by .750" thickness, with a .656" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.
The stepped profile is comprised of four 3/4" wide by 1/8" deep steps, with a 1/8" radius edge on each elevation change and a 1/8" radius edge on both side edges of the pattern. We have many base profile to compliment the use of this pattern including baseboard 4.500" - 3, baseboard 4.500" - 10, baseboard 4.500" - 14, and baseboard 5.250 - 37 to name just a few options, if you're looking for a specific size, just alter the search parameters of the width you desire.
Please review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of moulder set up and knife grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
