Casing Moulding 3-7/32"

Casing Moulding 3-7/32"

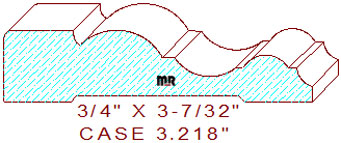

This premium casing moulding 3-7/32" measures 3.218" wide by .750" thickness. The custom profile is comprised of a 47/64" wide horizontal line with a 3/32" eased outer edge and a 1/8" cove on the inside edge, connected to a 35/64" convex arc and 7/16" concave semicircle that joins to a 15/32" wide half round circle flanked by small horizontal lines with a 7/32" cove on the thin side of the design. We offer a few other profiles that are similar in shape but with different dimensions for your review and consideration, casing 3.218" - 3, or casing 3.250" - 24 and casing 3.500" - 103.

Whether you have a Weinig R1000 profile grinder or a CNC Technology template maker, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind, to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.218" / Depth of Cut = .596" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
