Casing Moulding 3-7/32" - 3

Casing Moulding 3-7/32" - 3

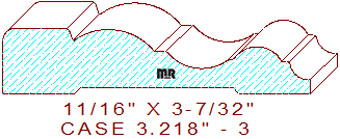

This stylish casing moulding 3-7/32" - 3 measures 3.218" wide by .687" thickness. The creative profile is comprised of a 47/64" wide horizontal line with a 1/8" eased outer edge and a 1/16" radius inside edge, connected to a series of convex arcs and concave coves divided by small horizontal lines. We have a few other profiles that are similar in shape with different dimensions for your review and consideration, casing 3.218", or casing 3.250" - 24 and casing 3.500" - 103. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. You may have to change the backout search parameters by a quarter of an inch or so to find a more suitable size cutter to mill the bottom side of this detail.

We're delighted you found a functional profile that interest you, please consider all the other things we can do for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're just getting started in the industry, read some of our informational articles, they will help you with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here.

Width = 3.218" / Depth of Cut = .687" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
