Chair Rail / Casing Moulding 3-1/2" - 11

Chair Rail / Casing Moulding 3-1/2" - 11

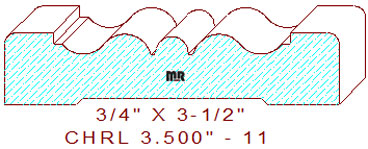

This lovely chair rail/symmetrical casing moulding 3-1/2" -11 measures 3.500" wide by .750" thickness. The graceful profile consists of a centered recessed half round bead flanked by small sunk fillets, attached to two bidirectional cyma reversa and a notched fillet that transitions up to the main elevation, both side edges retain a 1/8" eased edge. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Utilize any of our patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .281" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
