Chair Rail Moulding 3-1/2" - 9

Chair Rail Moulding 3-1/2" - 9

Chair Rail Moulding 3-1/2" - 9

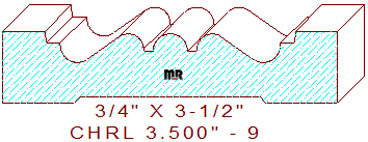

This beautiful chair rail/symmetrical casing moulding 3-1/2" -9 measures 3.500" wide by .750" thickness. The attractive profile is composed of a centered 23/64" wide half round bead flanked by small 3/32" wide sunk fillets, attached to two, bidirectional two tangent radius cyma reversa with a 5/32" wide by 1/8" tall notched line that transitions upward to a 7/16" wide line segment on each side. The edges were left square to utilize any of our radius edge knives, here is just one we think would complement this design, radius edge .093" We offer a few similar profiles in the same width for your review and consideration, chair rail 3.500" - 6, chair rail 3.500" - 11 and chair rail 3.500" - 59.

All cad (computer aided design) files contain important moulder setup and grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's marvelous architectural details, one astonishingly gorgeous profile at a time.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .325" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
