Chair Rail Moulding 3-1/2" - 6

Chair Rail Moulding 3-1/2" - 6

Chair Rail Moulding 3-1/2" - 6

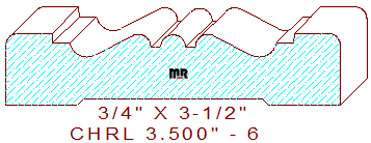

This prestigious chair rail/casing moulding 3-1/2" - 6 measures 3.500" wide by .750" thickness, allowing the pattern to be milled from four quarter lumber. The attractive symmetrical profile is composed of a 17/64" wide half round bead flanked by 7/64" wide sunk fillets in the center, attached to two semicircular arcs connected to one another by a tangent angled line, joined to a 11/64" wide by 7/64" tall notch that merges with a one half inch wide line segment with a 1/8" eased edge on each side of the pattern. We offer a few similar profiles in the same width for your review and consideration, chair rail 3.500" - 9, chair rail 3.500" - 11 and chair rail 3.500" - 59.

Mirror Reflections provides the cut steel size on all our molding template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .281" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
