Chair Rail Moulding 3-1/2" - 13

Chair Rail Moulding 3-1/2" - 13

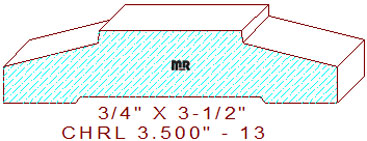

This beautiful chair rail moulding 3-1/2" - 13 measures 3.500" wide by .750" thickness. The pattern is a popular design in western churches throughout the United States. The beveled edge profile is comprised of a 1-1/2" wide by 1/8" tall raised fillet in the center, flanked by a beveled line that transitions the thickness to 3/8", both side edges are eased with a 3/64" radius. We have a few other profile options that will complement this design for your review and consideration, chair rail 3.500" - 14 and chair rail 4.500" - 1. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. The downloadable dxf file also contains a knife design for a 1/2" wide by 3/16" tall sisal notch in the backout (not shown).

Learn how to become more efficient while searching over 15,000 mouldings in our state of the art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .562" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
