Chair Rail Moulding 4-1/2" - 1

Chair Rail Moulding 4-1/2" - 1

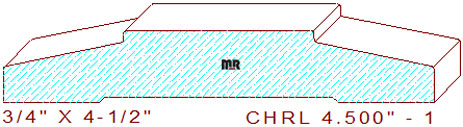

This beveled edge chair rail moulding 4-1/2" - 1 measures 4.500" wide by .750" thickness. The attractive molding is a popular design installed in many western churches throughout the United States. The beveled edge profile is comprised of a 2" wide by 1/8" tall raised fillet in the center, flanked by two 1-1/4" wide beveled lines that transition the thickness to 3/8", both side edges are eased with a 3/64" radius. We have a few other profile options that match up well with this design for your review and consideration, chair rail 3.500" - 13 and chair rail 3.500" - 14. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from. The downloadable dxf file also contains a template design for a 1/2" wide by 3/16" tall sisal notch incorporated in the backout on the bottom (not shown).

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide sufficient blend areas on the knives so you will never realize where one cutter begins or ends, these specific design features will substantially increase yield during the milling process.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.500" / Depth of Cut = .562" (top knives) & .062" (bottom cutters).
