Chair Rail Moulding 3-1/2" - 14

Chair Rail Moulding 3-1/2" - 14

Chair Rail Moulding 3-1/2" - 14

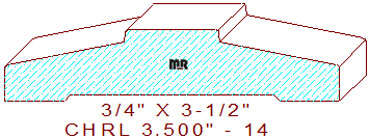

This symmetrical chair rail/casing moulding 3-1/2" - 14 measures 3.500" wide by .750" thickness. The pattern is a popular chair rail design in many western churches throughout the United States. The beveled edge profile is comprised of a 1" wide by 1/8" tall raised fillet in the center, flanked by two 11.238-degree beveled lines that transition the thickness to 3/8", both side edges are eased with a 3/64" radius. Here are a few other profile options that match up well with this design for your review and consideration, chair rail 3.500" - 13 and chair rail 4.500" - 1. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Utilize some of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over thirty-five years of experience in woodworking and former Weinig moulder/grinder field service technician.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .562" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
