Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide sufficient blend areas on the knives so you will never realize where one cutter begins or ends, these specific design features will substantially increase yield during the milling process.
For knife quoting purposes click to open the calculator below, we have added only the important measurements; please enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

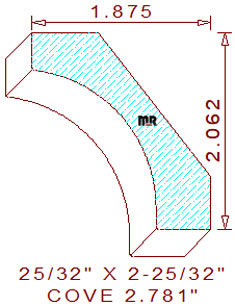

Width = 2.781" / Depth of Cut = .542" (top knives.)
Thickness = .781" / Depth of Cut = .431" (right blades) & .440" (left cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
