Cove 2-15/16"
Cove 2-15/16"

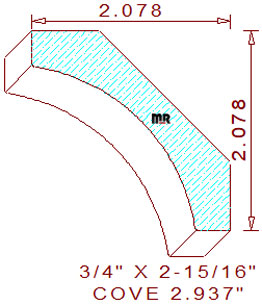

This elegant 2-15/16" cove mould measures 2.937" wide by .750" thickness, allowing the detail to be machined, sprung (laying horizontally flat) out of four-quarter lumber. The symmetrical profile is composed of a two-inch radius cove in the center, flanked by a 3/8" vertical line segment at the top and a 3/8" broad line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-5/64" tall and wide.
Mirror Reflections provides the cut steel size on all their molding template designs, this critical information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of them caring about the overall success of your business.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.505
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.505
Top Cutter Head
Width: 2.937
Depth of Cut: 0.394
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$234.72
Not Needed
Total:
$524.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$249.47
Not Needed
Total:
$558.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$271.59
Not Needed
Total:
$609.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
