Cove 4" - 3

Cove 4" - 3

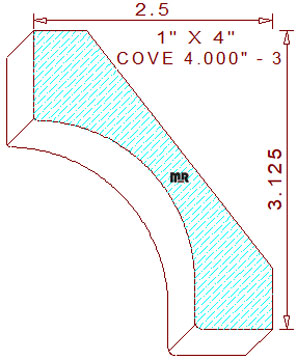

This attractive 4" - 3 cove mould measures 4.000" wide by 1.000" thick. The asymmetrical concave detail is comprised of a 1-11/16" radius cove in the center, attached to a 15/16" tall vertical fillet on top, and a 13/16" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees. These specific back bevels set the installed height at 3-1/8" tall with a projection of 2-1/2" wide.
Thinking about building an enclosed tool room for the profile knife grinder, template making machine, and a place to store all your moulding templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings . This small, simple task can save you thousands of dollars in repair costs by ensuring the table bearings are secured before moving.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.342
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.504
Top Cutter Head
Width: 4.000
Depth of Cut: 0.709
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$309.00
Not Needed
Total:
$642.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$328.00
Not Needed
Total:
$680.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$356.50
Not Needed
Total:
$737.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
