Cove 4" - 6
Cove 4" - 6

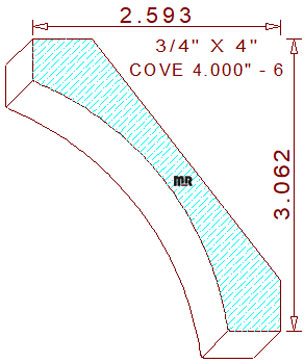

This asymmetrical 4" - 6 cove mould measures 4.000" wide by .750" thick. The concave profile comprises a 3-5/16" radius cove in the center, attached to a 29/64" tall vertical fillet on top, and a 35/64" wide horizontal line on the bottom of the pattern. The spring angles are fixed at thirty-eight, and fifty-two degrees, these specific back bevel cuts set the installed height at 3-1/16" tall, with a projection of 2-19/32" wide.
Please read our commentary about axial constant position for crown back bevels, the article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the machinery is axially calibrated.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.379
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.421
Top Cutter Head
Width: 4.000
Depth of Cut: 0.511
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$290.00
Not Needed
Total:
$623.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$309.00
Not Needed
Total:
$661.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$337.50
Not Needed
Total:
$718.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
