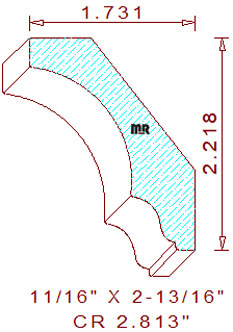

The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-7/32" tall with a projection of 1-47/64" wide. Two high points in the detail are deliberately positioned on the same level plane, our specialized design feature will assure excellent hold down conditions while milling the detail on an industrial molder, providing the pressure shoe is properly set parallel to the bed plates. Please read our commentary about axial constant position for crown moulding bevels, the article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the machine is axially calibrated.
For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.
Width = 2.812" / Depth of Cut = .352" (top knives.)
Thickness = .687" / Depth of Cut = .398" (right blades) & .654" (left cutters.)
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
