This Common Crown Moulding 3-3/16" - 2 measures 3.188" wide by .687" thickness, with a depth of cut of .306" on the right vertical blades, .602" depth of cut on the left set of cutters, and a .366" on the top horizontal profile knives.

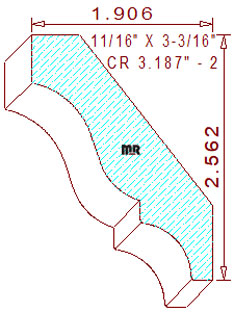

The traditional profile is comprised of a 5/8" radius arc tangent off of a 53/64" radius concave semicircle, forming a cyma recta in the center, attached to a 1/2" tall vertical line on top. The lower portion consists of a 37/64" radius cove, connected to a 15/64" vertical line, and a 15/64" wide horizontal line on the bottom of the pattern. The spring angles are fixed at thirty-eight, and fifty-two degrees, with a one half degree back cut on each side of the detail. These specific back bevels set the installed height at 2-9/16" tall with a projection of 1-29/32" wide. Two high points in the design were deliberately positioned on the same level plane, our creative design feature will create optimal hold down conditions while milling the pattern on an industrial moulder. We have other similar profiles you may want to review and consider for your current application, crown moulding 3-3/16" - 1, the difference is in the back bevels, these alter the height and projection when the pattern is installed.
Utilize any of our moulding patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on molding knife design. Please let us help you in the transformation of your client's house being constructed into a home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
