Crown 3-3/16" - 9

Crown 3-3/16" - 9

Crown 3-3/16" - 9

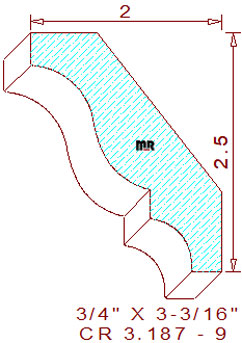

This standard 3-3/16" - 9 colonial crown mould measures 3.201" width by .750" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber on an industrial-style molder. The traditional terminating profile contains an 11/32" tall vertical line segment on the top left, connected to an 11/16" concave semicircle tangent to a 23/32" convex arc forming the cyma recta with a 5/16" vertical drop in elevation in the center. This step merges to a 15/32" cove with a 5/16" horizontal line segment on the bottom right side of the pattern. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 2-1/2" tall with a projection of 2" across the top.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project; we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.555
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.519
Top Cutter Head
Width: 3.187
Depth of Cut: 0.320
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$239.85
Not Needed
Total:
$563.35
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$255.60
Not Needed
Total:
$598.10
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$271.35
Not Needed
Total:
$632.85
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
