Crown 3-1/4" - 17
Crown 3-1/4" - 17

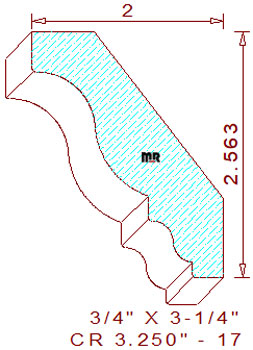

This double 3-1/4" - 17 cyma recta crown mould measures 3.252" width by .750" thickness, requiring a 3-1/2" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The lovely terminating profile comprises a 27/64" tall vertical line segment on the top left. The short line connects to the first of two beautiful s-shaped curvatures divided by a 1/4" vertical line in the center with a 5/32" tall by 21/64" broad perpendicular line in the lower right corner of the pattern. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to locking in the height at 2-9/16" tall with a 2" projection across the top.
Mirror Reflections offers thousands of inspirational and compelling architectural moldings that will shape the contour of every exquisite room in your client's beautiful home and office. Download our free dxf files, and see how easily our services can increase productivity while reducing manufacturing costs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.508
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.563
Top Cutter Head
Width: 3.250
Depth of Cut: 0.359
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$251.00
Not Needed
Total:
$584.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$267.00
Not Needed
Total:
$619.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$291.00
Not Needed
Total:
$671.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
