Crown 3-1/4" - 21

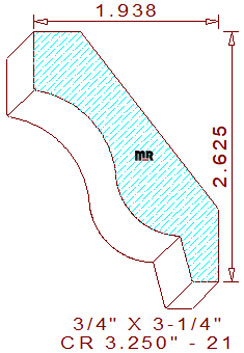

This fashionable 3-1/4" - 21 crown mould measures 3.262" width by .750" thickness, allowing the use of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The s-shaped terminating profile contains a 5/8" tall vertical line on the top left. The tall fillet joins a one-inch concave semicircle tangent to an 11/16" radius convex arc, merged with a 1/2" tapered line with a 9/32" broad flat line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 2-5/8" tall with a projection of 1-15/16" across the top.

All CAD (computer-aided design) files contain necessary machine setup and grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's exquisite architectural details, one astonishingly gorgeous profile at a time.
