Crown 3-1/4" - 26

Crown 3-1/4" - 26

Crown 3-1/4" - 26

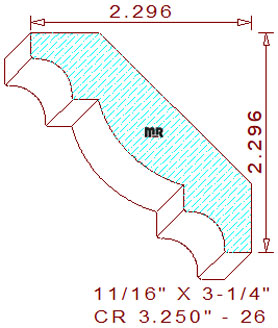

This symmetrical 3-1/4" - 26 crown mould measures 3.250" wide by .687" thickness. The profile design is comprised of a 1-19/64" radius arc in the center connected to a 9/32" horizontal and vertical line, joined to a 23/64" cove with a 23/64" vertical line on top and a 23/64" horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-19/64" tall and wide. Three high points in the detail were deliberately positioned on the same plane. This specialized design feature will assure excellent hold-down conditions while milling, providing the pressure shoe is parallel to the machine bed plates.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our wide variety of creative designs for years; we trust you will find that particular profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.506
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.506
Top Cutter Head
Width: 3.250
Depth of Cut: 0.241
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$243.00
Not Needed
Total:
$523.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$259.00
Not Needed
Total:
$558.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$275.00
Not Needed
Total:
$593.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
