Crown 3-5/16" - 8
Crown 3-5/16" - 8

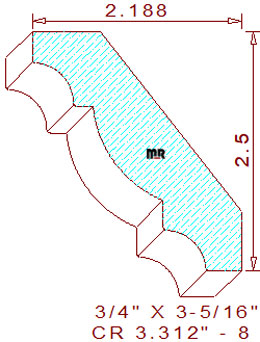

This compelling 3-5/16" - 8 crown mould measures 3.317" width by .750" thickness, requiring a 3-9/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The concave & convex terminating profile comprises a 21/64" vertical line connected to a 27/64" cove with a 13/64" horizontal fillet on the top left. The center retains a 1-3/16" convex arc attached to a 5/16" vertical segment and a 27/64" cavetto with a 3/8" broad line on the design's bottom right corner. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to locking in the height at 2-1/2" tall with a 2-3/16" projection across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.563
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.378
Top Cutter Head
Width: 3.312
Depth of Cut: 0.491
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$254.22
Not Needed
Total:
$587.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$270.47
Not Needed
Total:
$622.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$294.84
Not Needed
Total:
$675.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
