Crown 3-3/8" - 16

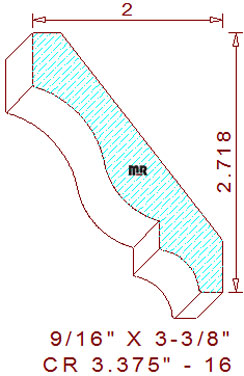

This standard 3-3/8" - 16 crown mould measures 3.375" wide by .562" thickness. The everyday profile is comprised of two tangent radiuses creating a cyma recta in the center, attached to a 9/16" tall vertical fillet on top, and a 5/16" tall fillet below, joined to a 15/64" radius cove with a 1/4" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees; search our bevels category by these degrees to find back bevel cutters appropriate for this standard crown design these specific back bevels set the installed height at 2-23/32" tall with a projection of 2" broad. We also have a couple of similar designs in the same width for your review and consideration, crown 3.375 - 4, and crown 3.375 - 9, the differences are in the degree of the back angles, this changes the overall height and projection of the detail when installed.
