Crown 3-3/8" - 9

Crown 3-3/8" - 9

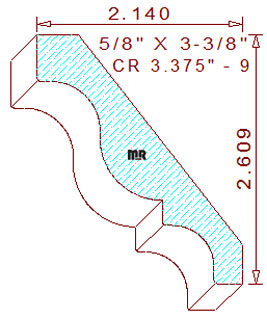

This classic 3-3/8" - 9 crown mould measures 3.375" wide by .625" thickness. The colonial profile is comprised of two tangent radiuses creating a cyma recta attached to a 1/2" tall vertical fillet on top, and the lower portion consists of a 7/16" radius cavetto flanked by a 17/64" vertical segment and a 19/64" wide fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees; search our bevels category by these degrees to find back bevel cutters appropriate for this standard crown design these specific back bevels set the installed height at 2-39/64" tall with a projection of 2-9/64" wide. We offer a couple of other similar colonial-style crown designs in the same width for your review and consideration, crown 3.375" - 4, and crown 3.375" - 16, the differences are in the shape and degree of the back angles, this changes the overall height and projection of the detail when installed.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.339
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.253
Top Cutter Head
Width: 3.375
Depth of Cut: 0.442
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$257.50
Not Needed
Total:
$590.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$274.00
Not Needed
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$298.75
Not Needed
Total:
$679.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
