Crown Moulding 3-3/8" - 7

Crown Moulding 3-3/8" - 7

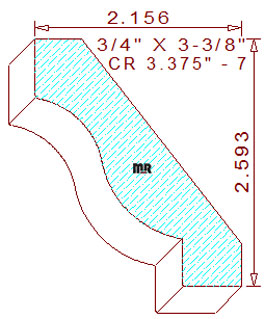

This Cyma Recta Crown Moulding 3-3/8" - 7 measures 3.375" wide by .750" thickness with a depth of cut of .295" on the right vertical back bevel cutters, .349" on the left vertical blades, and a .547" depth of cut on the top horizontal set of moulding knives. We also have a few similar style crown designs in the same width for your review and consideration, Crown 3.375" - 3, and Crown 3.375" - 8, the differences are minimal in the shape but enough to alter the overall height and projection of the detail when installed.

The profile is comprised of a 1-1/32" radius arc tangent off of a 53/64" concave radius creating a cyma recta in the middle, attached to a 5/8" tall vertical fillet on top, the lower portion consists of a 1/2" tall vertical fillet, and a 5/8" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, search our bevels category by these degrees to find back bevel cutters appropriate for this beveled crown moulding design, these specific back bevels set the installed height at 2-19/32" tall with a projection of 2-5/32" wide. Two high points in the detail were purposely positioned on the same level plane, this creative design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is set parallel to the moulder bed plates.

With over 15,000 moulding knife designs in our search by size profile catalog, there is something for everyone’s creative architectural style. Utilize our Moulding Manufacturers Map listed by states to help you locate a local mill in your area to manufacture this creative moulding.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
