Crown 3-3/8" - 8
Crown 3-3/8" - 8

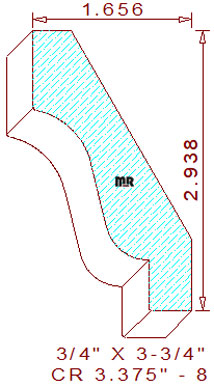

This s-shaped 3-3/8" - 8 crown mould measures 3.375" wide by .750" thickness. The lovely profile is comprised of a two tangent radius cyma recta, connected to a 27/32" tall vertical fillet on the top, the lower portion of the design consists of a 17/32" tall vertical fillet attached to a 29/64' wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty and sixty degrees; search our bevels category by these degrees to find back bevel cutters appropriate for these cyma recta designs these specific back bevels set the installed height at 2-15/16" tall with a projection of 1-21/32" wide. We have a couple of other similar profiles for your review and consideration, crown 3.375" - 3, and crown 3.375" - 7.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.344
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.374
Top Cutter Head
Width: 3.375
Depth of Cut: 0.466
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$257.50
Not Needed
Total:
$590.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$274.00
Not Needed
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$298.75
Not Needed
Total:
$679.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
