Crown 3-7/16" - 11

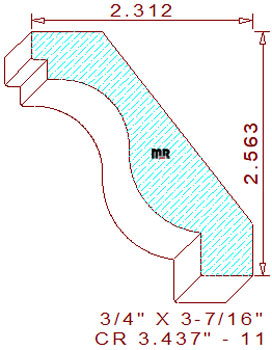

This eye-catching 3-7/16" - 11 crown mould measures 3.437" wide by .750" thickness. The detail will require four quarter lumber for milling sprung (laying horizontally flat). The gorgeous profile is composed of a 19/64" vertical line joined to a 13/64" tall by 5/32" wide notch at the top, connected to a two tangent radius cyma recta in the center, attached to a 21/64" tall by 35/64" wide squared lines at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-9/16" tall with a projection of 2-5/16" wide.

Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated.
