Crown 3-7/16" - 4

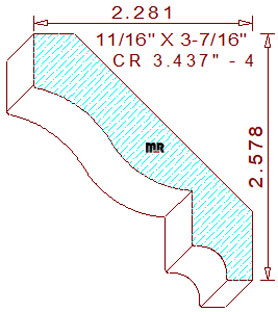

This custom 3-7/16" - 4 crown mould measures 3.437" wide by .687" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The embellishing profile is composed of a 9/16" tall vertical segment on top. It's connected to a two tangent radius cyma recta joined to a 37/64" tall segment explicitly designed for a piece of 1/2" rope mould, attached to a 9/32" cove with a 9/32" horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 2-37/64" tall with a projection of 2-9/32" wide.

Mirror Reflections provides the cut steel size on all our molding template designs, this vital information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of us caring about the overall success of your business.
