Crown 3-1/2" - 29
Crown 3-1/2" - 29

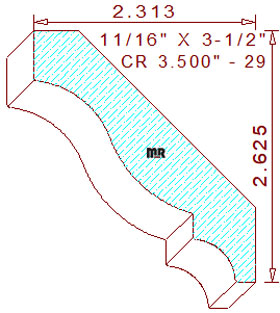

This ordinary 3-1/2" - 29 crown mould measures 3.500" wide by .687" thick. The standard profile features a free-flowing cyma recta in the middle, with two tangent radii attached to a 17/32" tall vertical fillet at the top. The lower portion of the design consists of a 29/64" radius cove flanked by a 9/32" vertical line and a 7/32" horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees; search our bevels category by this degree to find back bevel cutters appropriate for this typical crown design. These specific back bevels set the installed height at 2-5/8" tall with a projection of 2-5/16" wide. We have a few more similar style patterns for your review and consideration crown 3.500" - 1, crown 3.500" - 6, Crown 3.500" - 14, and crown 3.500" - 25.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.334
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.554
Top Cutter Head
Width: 3.500
Depth of Cut: 0.434
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.25
$128.25
(Template not needed)
$273.50
Not Needed
Total:
$574.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.75
$137.75
(Template not needed)
$290.50
Not Needed
Total:
$610.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$196.00
$152.00
(Template not needed)
$316.00
Not Needed
Total:
$664.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
