Crown 3-1/2" - 6

Crown 3-1/2" - 6

Crown 3-1/2" - 6

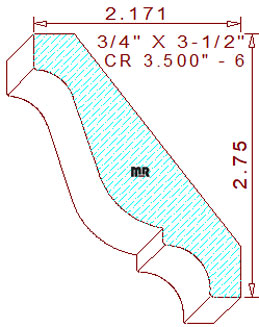

This old world 3-1/2" - 6 crown mould measures 3.500" wide by .750" thickness. The unique profile comprises shallow cyma recta in the middle consisting of two tangent radiuses attached to a 3/8" tall vertical fillet on top. The lower portion of the pattern consists of a 29/64" radius cove flanked by a 3/16" tall vertical fillet and a 5/16" horizontal segment at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees; search our bevels category by these degrees to find back bevel cutters appropriate for this vintage crown moulding, these specific back bevels set the installed height at 2-3/4" tall with a projection of 2-11/64" wide. We have a few more similar style crown for your review and consideration, crown 3.500" - 1, crown 3.500" - 14, crown 3.500" - 25, and crown 3.500" - 29.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.341
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.325
Top Cutter Head
Width: 3.500
Depth of Cut: 0.485
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$255.50
Not Needed
Total:
$579.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$272.50
Not Needed
Total:
$615.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$289.50
Not Needed
Total:
$651.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
