Crown 3-5/8" - 15
Crown 3-5/8" - 15

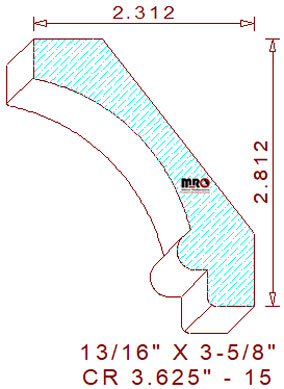

This incurved 3-5/8" - 15 crown mould measures 3.625" wide by .812" thickness, requiring a 3-7/8" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The decorative terminating profile composes a 27/64" vertical line at the top, connected to a 2-1/8" cove that joins to a 15/32" half-round bead with a 3/8" vertical and a 1/2" squared lines at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-13/16" tall with a projection of 2-5/16" wide. Additionally, we offer a smaller version of this profile for your review and consideration, crown 2.250" - 13.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.567
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.466
Top Cutter Head
Width: 3.625
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$270.50
Not Needed
Total:
$603.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$288.00
Not Needed
Total:
$640.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$314.25
Not Needed
Total:
$694.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
