Crown 4" - 24

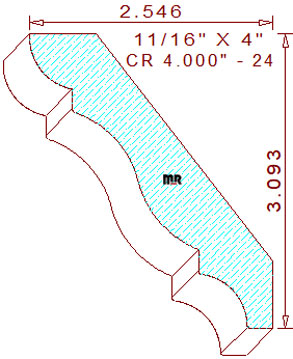

This common crown mould measures 4.000" wide by .687" thickness, enabling the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The traditional profile is comprised of a 37/64" quarter round bead attached to a 1/4" tall line segment on the top left, connected to a graceful two tangent radius cyma recta in the center, joined to another 1/4" tall line segment with a 35/64" cove and a 17/64" horizontal line segment at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as setting the installed height at 3-3/32" tall with a projection of 2-35/64" wide.

Our precise cad drawings contain plenty of important information that will assist you during the setup and milling of this detail. Our acrylic templates provide sufficient blend areas on the knives so you will never realize where one cutter begins or ends, these specific design features will substantially increase yield during the milling process.
