Crown 4" - 45
Crown 4" - 45

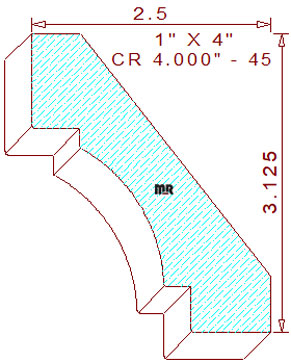

This concave 4" - 45 crown mould measures 4.000" wide by 1.000" thickness. The cove style profile is comprised of a 1" tall by 1/2" broad squared lines on top, connected to a 1-21/32" radius cove in the center flanked by a 7/32" tall vertical line above and a 9/32" wide horizontal line below, joined to a 31/64" tall by 27/32" wide horizontal line at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-1/8" tall with a projection of 2-1/2" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.404
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.359
Top Cutter Head
Width: 4.000
Depth of Cut: 0.728
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$309.00
Not Needed
Total:
$642.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$328.00
Not Needed
Total:
$680.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$356.50
Not Needed
Total:
$737.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
