Crown 4" - 51
Crown 4" - 51

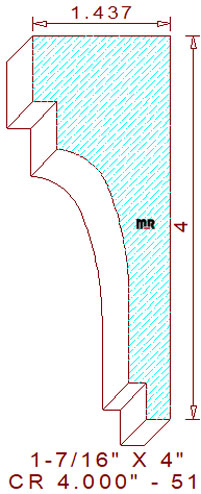

This 4" - 51 contemporary crown mould measures 4.000" tall by 1.437" thickness, permitting the use of six or eight-quarter lumber for milling. The elegant profile is composed of an 11/16" tall vertical line segment at the top, connected to a 1/4" wide by 1/2" tall perpendicular notch joined to a 2-7/16" wide two tangent radius congee in the center, attached to a 3/8" tall by 3/16" wide rabbet leaving a 1/4" wide horizontal line on the bottom of the pattern. We offer a couple of alternative profiles you may want to review and consider, crown molding 4.000" - 54 and crown 4.000" - 56.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 1.187
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$328.00
Not Needed
Total:
$328.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$347.00
Not Needed
Total:
$347.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$375.50
Not Needed
Total:
$375.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
