Crown 4-1/4" - 44
Crown 4-1/4" - 44

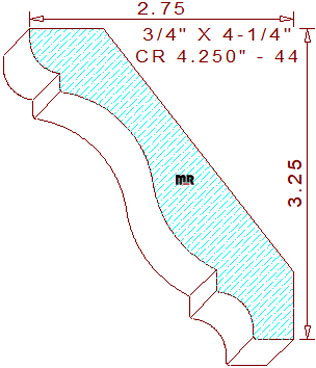

This intriguing 4-1/4" - 44 crown mould measures 4.254" width by .750" thickness, permitting the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber on an industrial moulder. The elegant supporting profile contains a 3/8" quarter round convex arc with a 13/64" vertical line on the top left. The line connects to a free-flowing two tangent radius cyma recta in the center, merged with a 7/32" tall line and a 3/8" cove with a 27/64" broad line on the bottom right side of the pattern. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 3-1/4" tall with a projection of 2-3/4" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.600
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.434
Top Cutter Head
Width: 4.250
Depth of Cut: 0.396
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$303.00
Not Needed
Total:
$636.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$323.00
Not Needed
Total:
$675.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$353.00
Not Needed
Total:
$733.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
